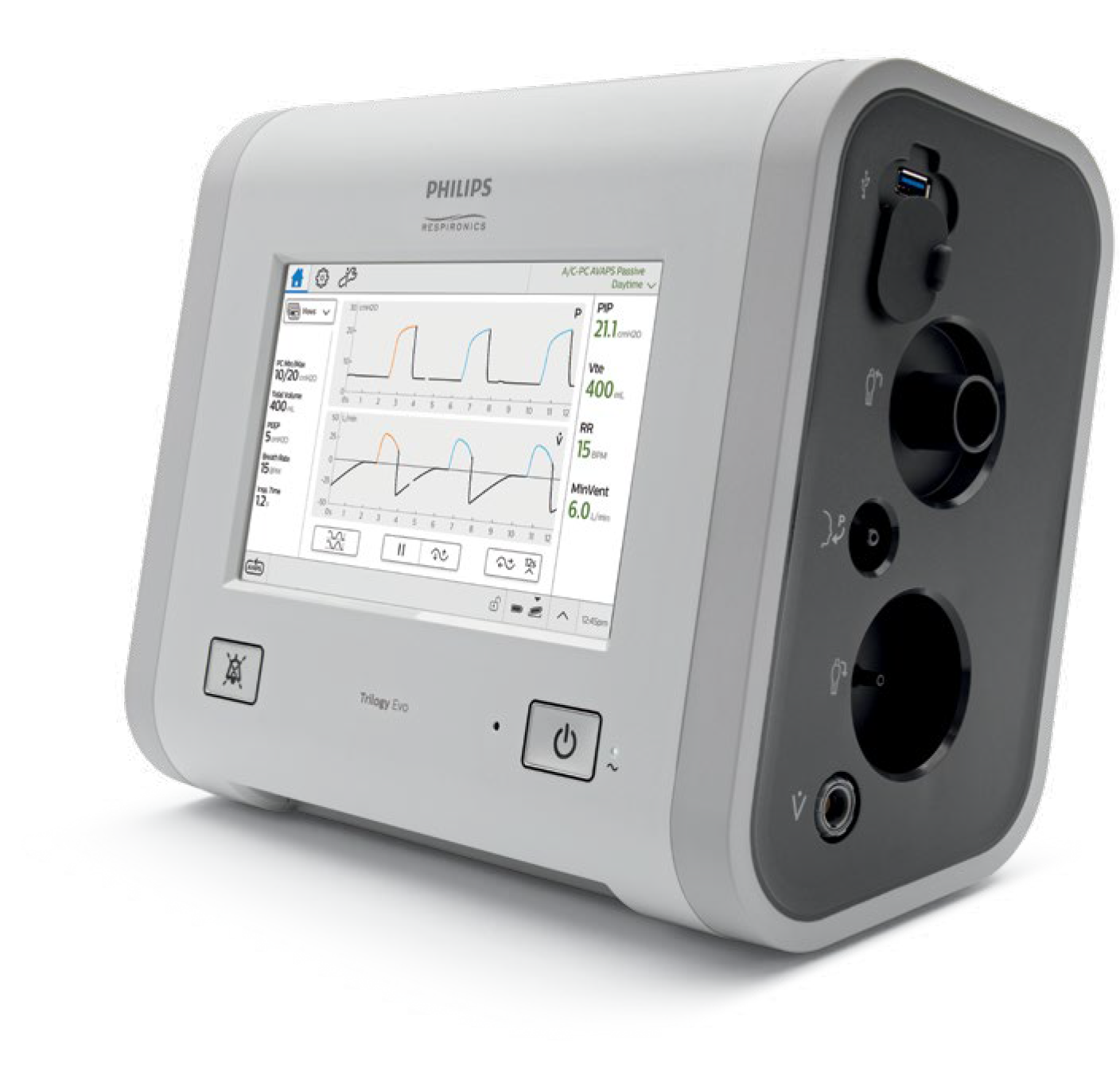

Philips Triology Evo Transport Ventilator

Name: Philips Triology Evo Transport Ventilator
Brand: MedX
SKU: philips-triology-evo-transport-ventilator-0
Price: 380000 INR
Availability: OutOfStock

₹3,80,000₹5,80,00034% offYou save ₹2,00,000

Inclusive of 18% GST · ₹3,22,034 before tax

Available offers

🧾 GST invoice provided on every order
🛡️ 1 Year manufacturer warranty included

Delivery options

Enter your pincode to check availability

Quantity

Out of Stock

BrandMedX

SKUphilips-triology-evo-transport-ventilator-0

ConditionNew

🔒

Secure PaymentUPI · Cards · EMI

↩️

7-Day ReturnsConditions apply

Key Highlights

Low flow — 0 to 30 l/min; maximum 10 psi

High pressure — 280 to 600 kPa (41 to 87 psi)

Tidal volume (Vti or Vte) — 0 to 2000 ml

Minute ventilation (MinVent) — 0 to 30 l/min

Leak — 0 to 200 l/min

Respiratory rate (RR) — 0 to 90 BPM

Description

Specifications

Ventilation modes

A/C-PC - Assist control (pressure control)
A/C-VC - Assist control (volume control)
CPAP - Continuous positive airway pressure
PSV - Pressure support ventilation
S/T - Spontaneous/timed ventilation
SIMV-PC - Synchronized intermittent mandatory ventilation (pressure control)
SIMV-VC - Synchronized intermittent mandatory ventilation (volume control)
MPV-PC - Mouthpiece ventilation (pressure control)
MPV-VC - Mouthpiece ventilation (volume control)

Physical

Weight - 5.2 kg
Size - 16.5 cm D x 28.6 cm W x 24.5 cm H 6.48” D x 11.25” W x 9.65” H
Screen dimensions - 8”, 20.32 cm

Electrical

AC input voltage - 100V - 240V, 50/60 Hz, 1.7 - 0.6A
DC input voltage - 12/24V 6.5A
Internal and detachable Li-on batteries - 15 hours’ nominal total run time per method in IEC 80601-2-72 (7.5 hours each battery)
Charge time for detachable and internal battery - from 0% to 80%: 2.5 hours; from 0% to 100%: 3.5 hours

Alarms

Inspiratory Pressure - PEEP+1 to 89 cmH2O
Tidal Volume - OFF, 10 - 2000 ml
Minute Ventilation - OFF, 0.2 - 30 L/min
Respiratory Rate - OFF, 1 - 90 BPM
Circuit Disconnection - OFF, 5 - 60 sec
Apnea Interval - 5 to 60 sec
No trigger - OFF; 0.5-15 min (ONLY in MPV)

Controls

AVAPS with passive circuit - PSV, S/T, and A/C-PC modes only
Tidal volume - 35-2000 ml on Dual Limb & Active Flow circuits, 50-2000 ml on passive & active PAP circuits
Breath rate - 0 - 80 BPM
PEEP - 0 - 35 cmH20 for active circuits 3 - 25 cmH20 for passive circuits
EPAP/CPAP - 3 to 25 cmH20
IPAP - 3 to 60 cmH20
Pressure support/pressure control - 0 to 60 cmH20
Inspiratory time - 0.3 - 5.0s
Rise time - 0 to 6
Triggering and cycling - Off, AutoTrak, Sensitive, AutoTrak, and Flow Trigger
Flow trigger sensitivity - 0.5 - 9 l/min
Flow cycle sensitivity - 10% - 90% of peak flow
Flow pattern - Square, Ramp
FiO2 - 21% - 100%
Inspiratory time min/max - 0.3 to 3.0 sec
Backup ventilation - ON-OFF

Specifications

Low flow	0 to 30 l/min; maximum 10 psi
High pressure	280 to 600 kPa (41 to 87 psi)
Tidal volume (Vti or Vte)	0 to 2000 ml
Minute ventilation (MinVent)	0 to 30 l/min
Leak	0 to 200 l/min
Respiratory rate (RR)	0 to 90 BPM
Peak inspiratory flow (PIF)	0 to 200 l/min
Peak inspiratory pressure (PIP)	0 to 90 cmH2O
Mean airway pressure	0 to 90 cmH2O
Percentage spontaneous triggered breaths (%Spont Trig)	0 to 100%
I:E ratio	9.9:1 to 1:9.9
Dynamic compliance (Dyn C)	1 to 100 ml/cmH2O
Dynamic resistance (Dyn R)	5 to 200 cmH2O/l/sec
Dynamic plateau pressure (Dyn Pplat)	0 to 90 cmH2O
Auto-PEEP	0 to 20 cmH2O
FiO2 with FiO2 sensor	21% to 100%
SpO2 with pulse oximeter accessory	0 to 100%
Pulse rate with pulse oximeter accessory	18 to 321 beats per minute
EtCO2 with CO2 accessory	0 to 150 mmHg
