“Compact & Reliable Fetal Monitor with Advanced FHR Detection and Smart Data Management”

General Specifications

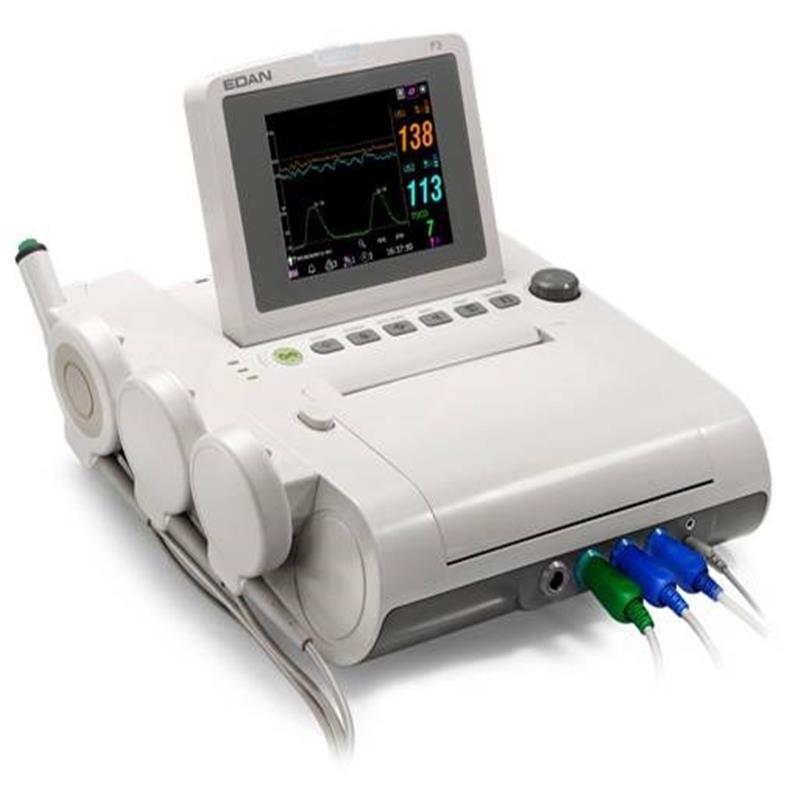

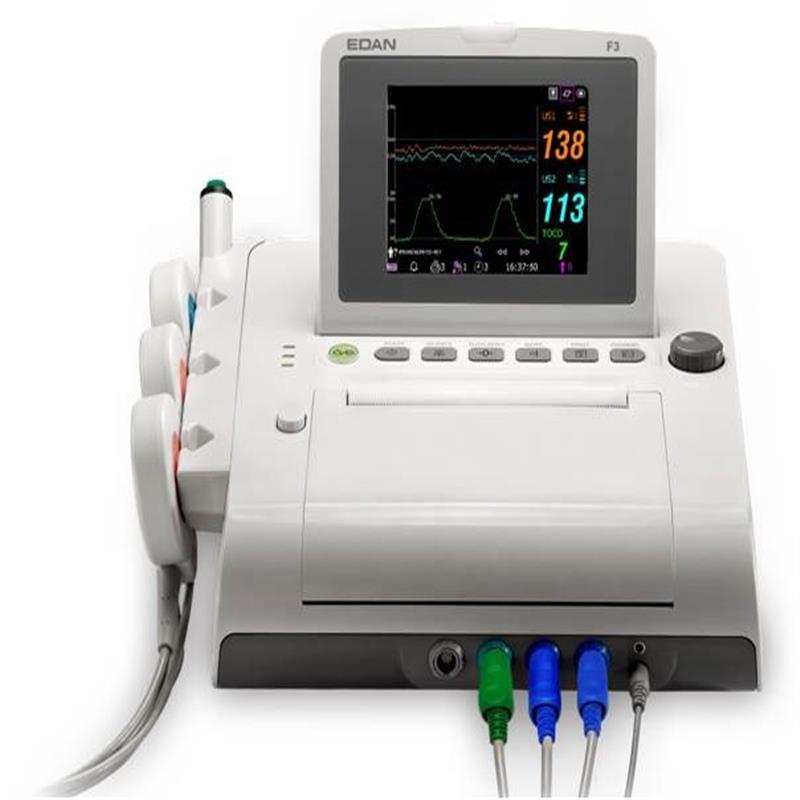

• Model: F3 Fetal Monitor
• Application: Obstetrics departments, clinics & hospitals
• Design: Compact, lightweight & portable
• Mounting Options: Wall mount & rolling stand compatible
• Award: iF Design Award for ergonomic design

Monitoring Parameters

• FHR (Fetal Heart Rate)
• TOCO (Uterine Contraction)
• DECG (Direct ECG – optional)
• IUP (Intrauterine Pressure – optional)
• Fetal Movement Detection

Display & Interface

• 5.6-inch foldable color TFT screen
• Large numeric & waveform display for easy viewing
• Simple silicone-button operation
• Multi-display modes for flexible monitoring

FHR Detection Technology

• Advanced FHR signal processing
• Signals overlap verification for twin differentiation
• FHR signal quality indicator for optimal probe placement

Printing System

• Built-in thermal printer
• Supports 150/152 mm recording paper
• Real-time printing speeds: 1 / 2 / 3 cm/min
• Fast printing for history traces: 15 mm/sec

Data Storage & Management

• Built-in memory: Up to 60 hours of monitoring data
• USB interface for expanded storage
• Compatible with EDAN Insight software for PC data transfer
• MFM-CNS network support for remote monitoring
• MFM-CNS Lite for PC-based data management

Connectivity

• USB port for data export and storage
• Network connectivity for centralized monitoring
• CTG data transfer to PC systems

Battery & Portability

• Long-life Li-ion battery for outpatient use
• Lightweight design for easy transport
• Ideal for bedside and mobile applications
